The product features a stainless steel pump unit, dual-angle shaft, frame integrated bearing structure, modular intake geometry, and a structural bulkhead adapter. The product is designed for a long life and is proven to outperform competitive products in comparable size ranges.

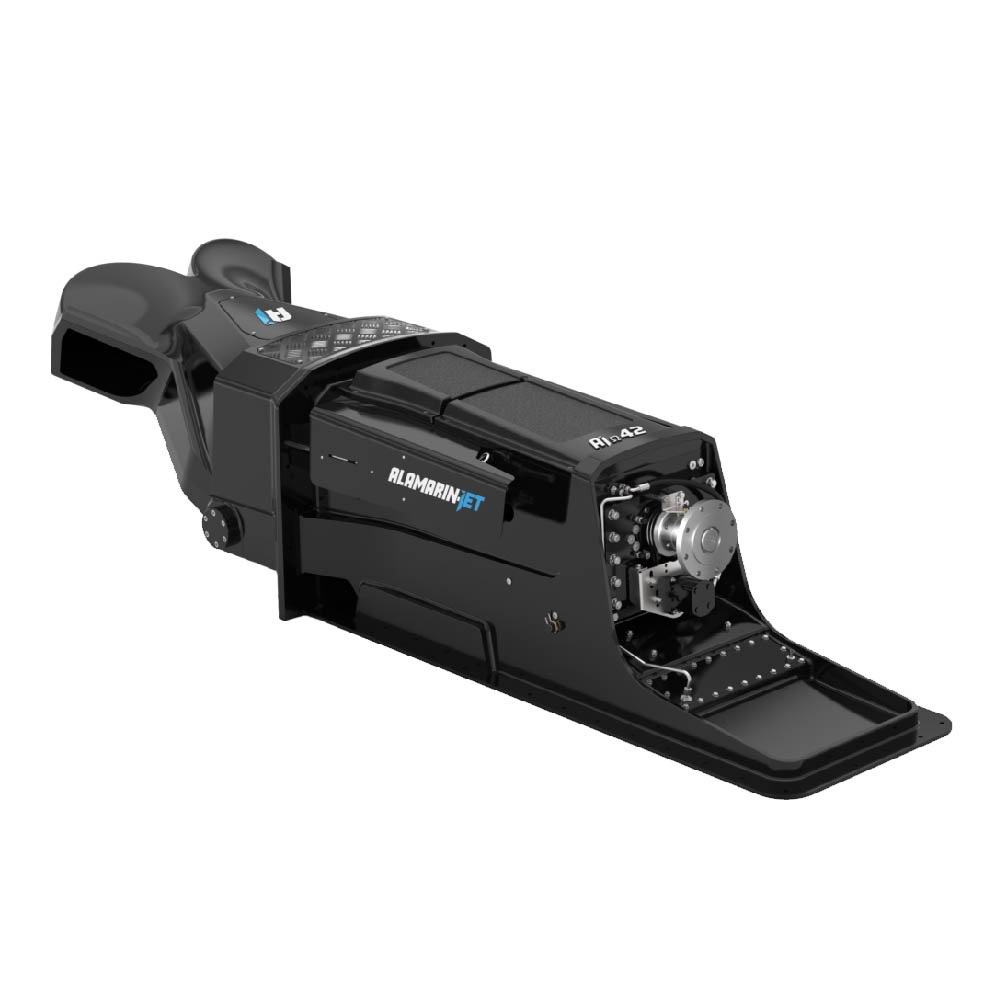

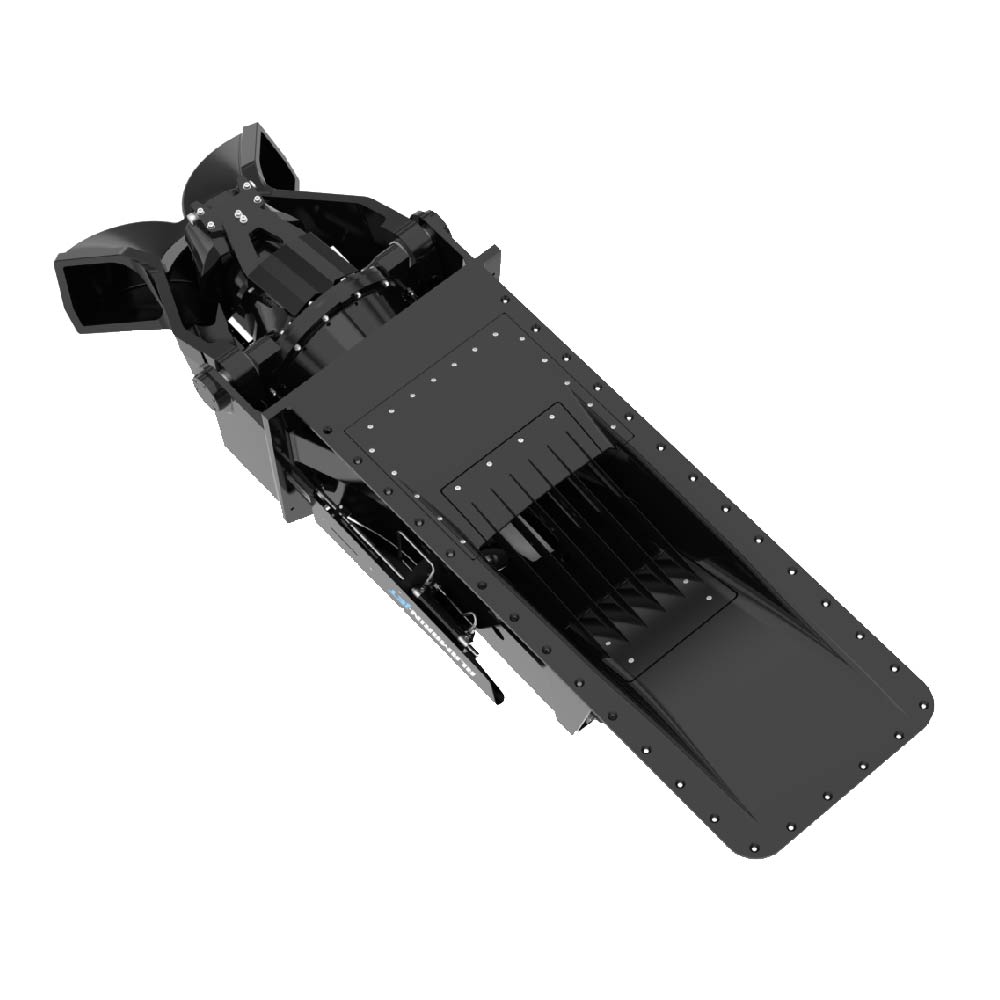

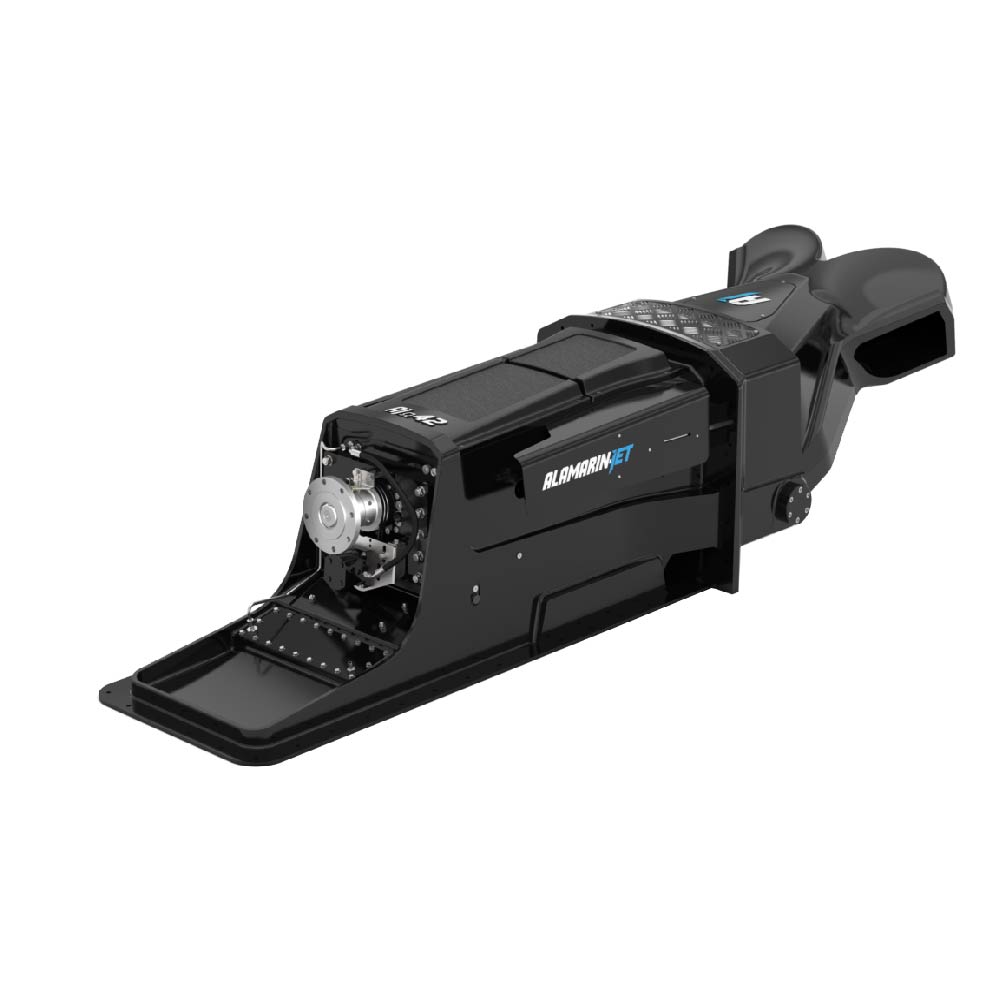

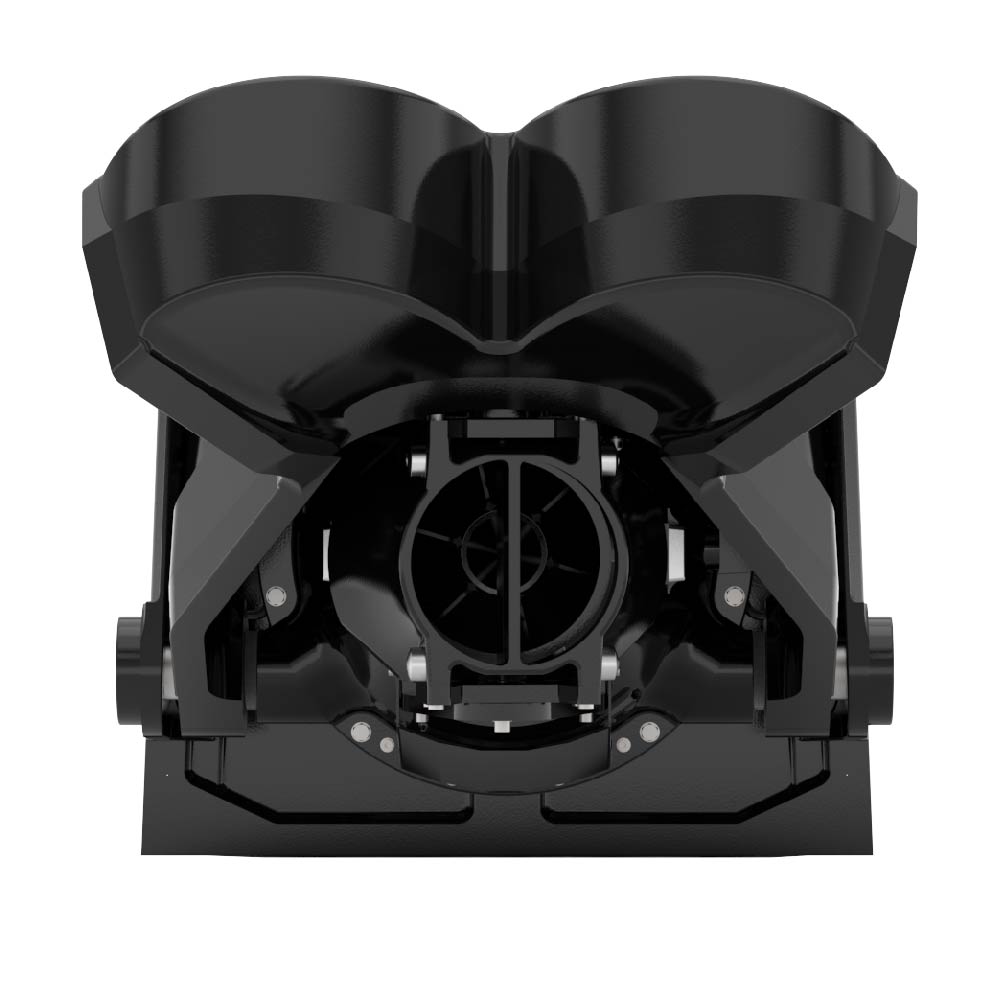

Omega 42 Waterjet- Max Input power- 2040 HP/ 1500 KW
The Omega 42 is the first model in the Alamarin-Jet Omega Series, with a max input power of 2040HP, and promises high-speed efficiency while maintaining high bollard pull and cavitation margins.
1. Pump type – mixed flow, single stage
2. Aluminum/Stainless Steel Construction
3. Max impeller diameter – max.480 mm/18.9 in
4. Max impeller shaft RPM of 2300 1/min
5. Input power maxed out at 1500kW/2040 HP
6. Weight of 815 kg
7. Reverse deflector control – hydraulic / SIGMA Controls
| Liferaft Capacity | Model | SWL | Standard Outreach | Max Launching Height |
|---|---|---|---|---|
<16 P | Lms.15.2/3.3.5 Lms.23.2/3.6 Lms.37.0/4.5 | 15.2kN 23.2kN 37.0kN | 3.5 m 3.6 m 4.5 m | 45 45 45 |
