1. High flow in a compact design.
2. High pressure capacity designed for blow-out proof with internally loaded ball stem.
3. Micro-finished ball provides a positive seal.
4. 90 degree actuation for 2-way and 180 degree actuation for 3-way ball valves.
5. Panel mounting as standard
6. Chevron stem seal, adjustable with the handle disassembled.
7. Handle indicates flow direction.
8. Low operating torques and positive handle stops.
9. Optional pneumatic actuation.

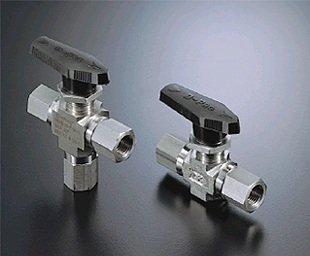

Ball Valves - VH86
Two way or Three way series ball valves (upto 6000psig) used for diverting fluids utilized in process and instrumentation applications.
1. 2-way bi-directional Valves
2. 3-way diverter Valves
3. Working Pressure : 6,000 psig
4. Stainless Steel
5. DK-Lok 1/8 to 3/4 in. OD
6. DK-Lok 3mm to 16mm OD
7. Pipe thread 1/8 to 1/2 in.
