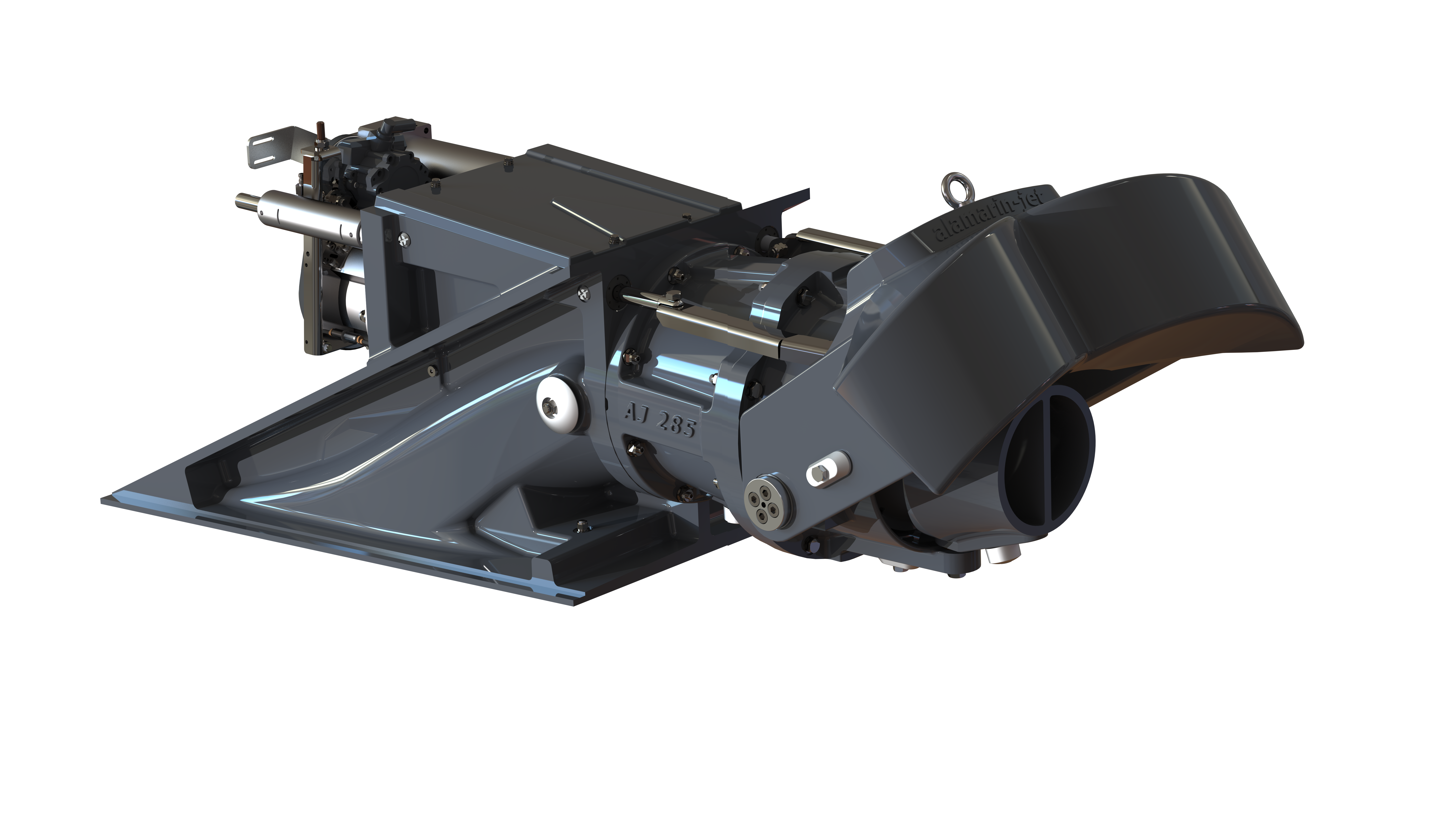

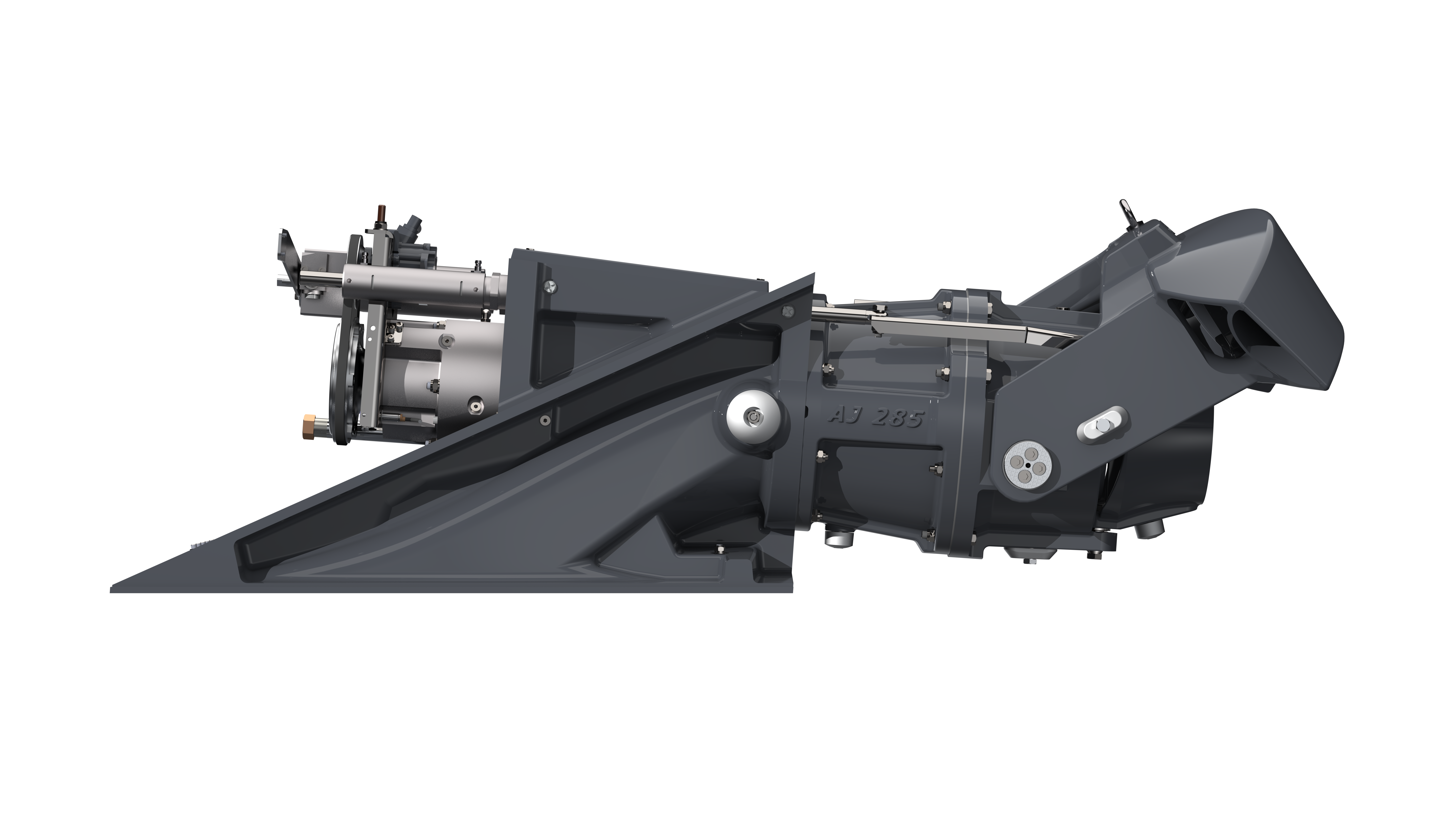

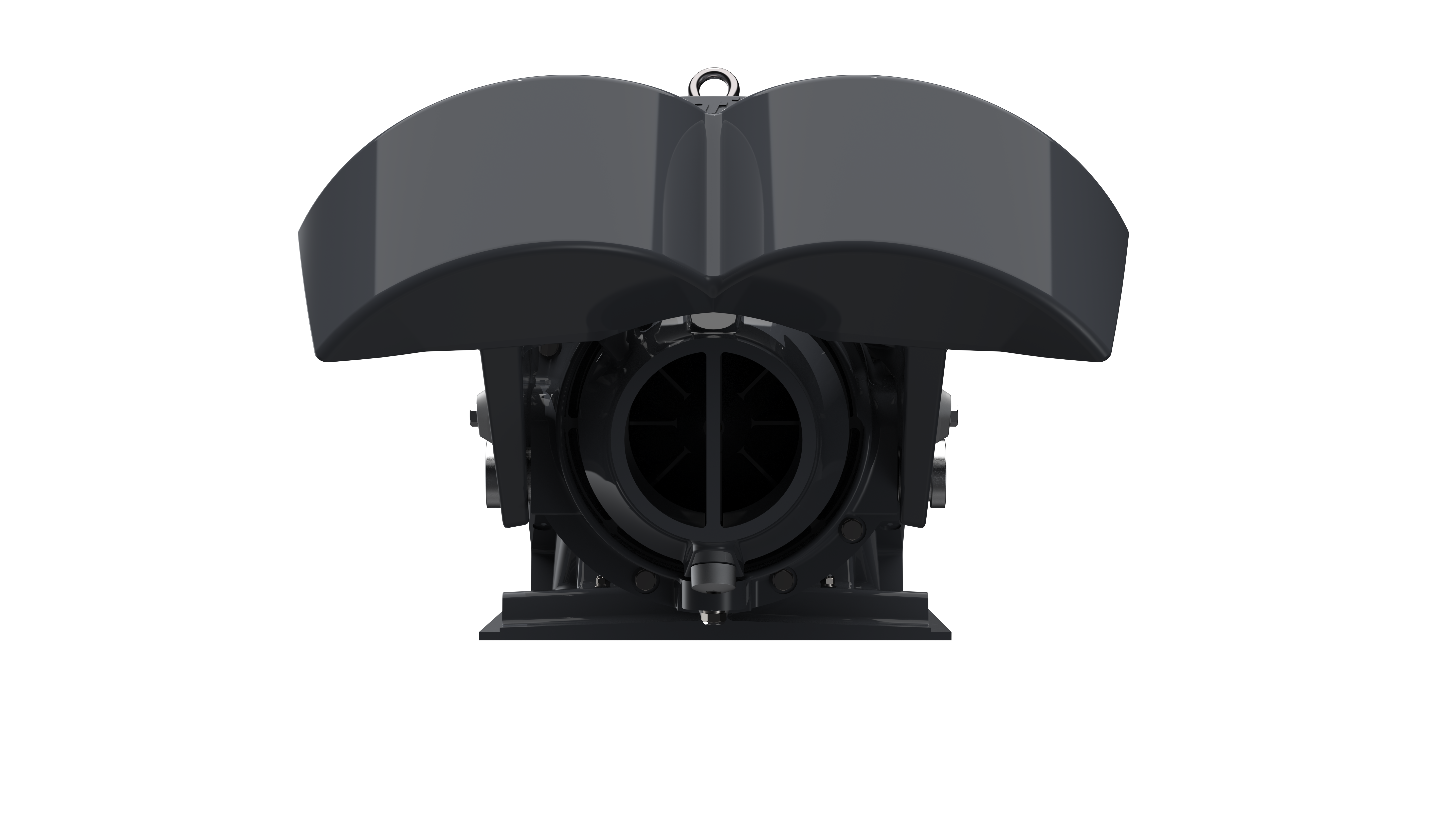

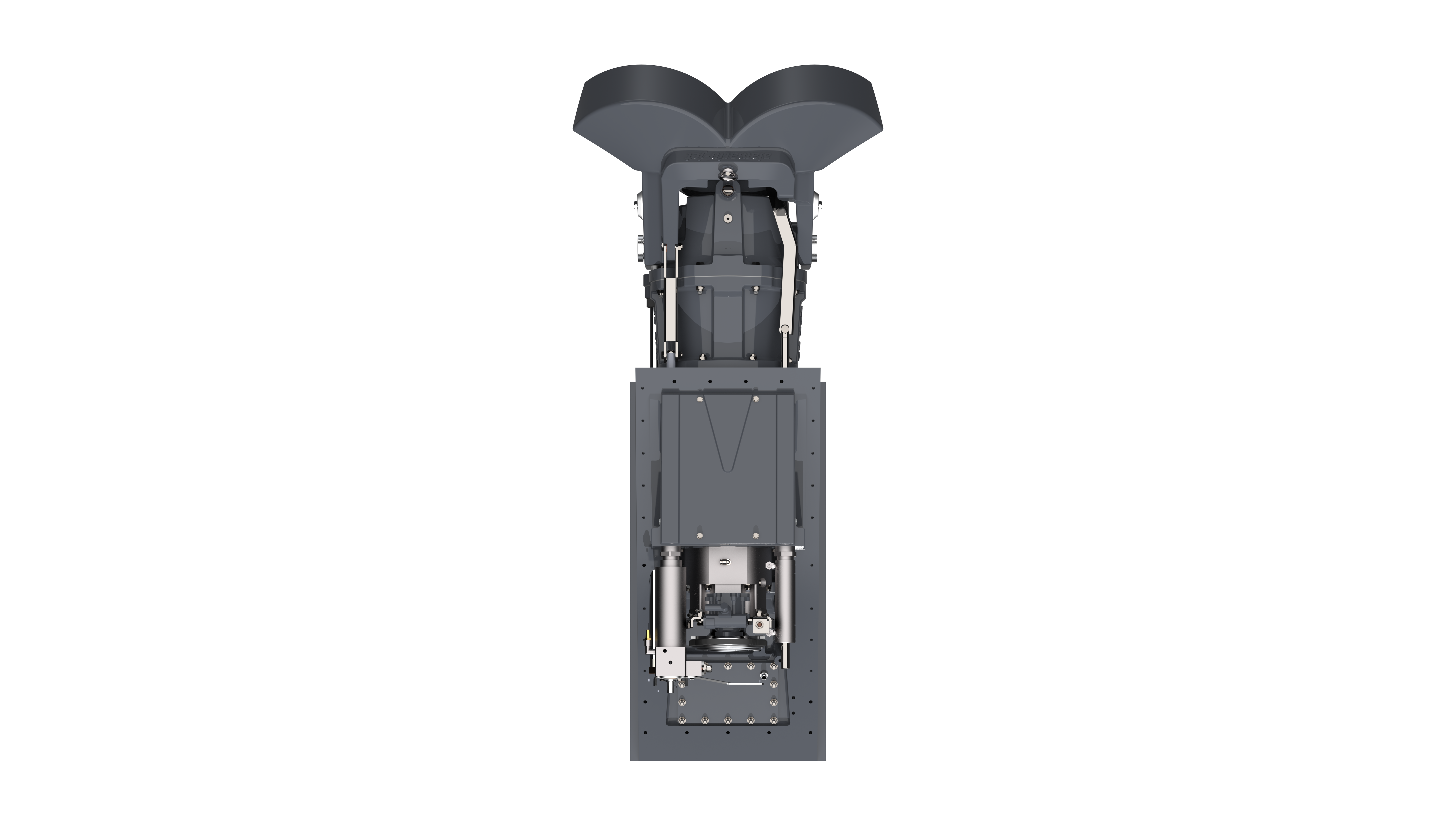

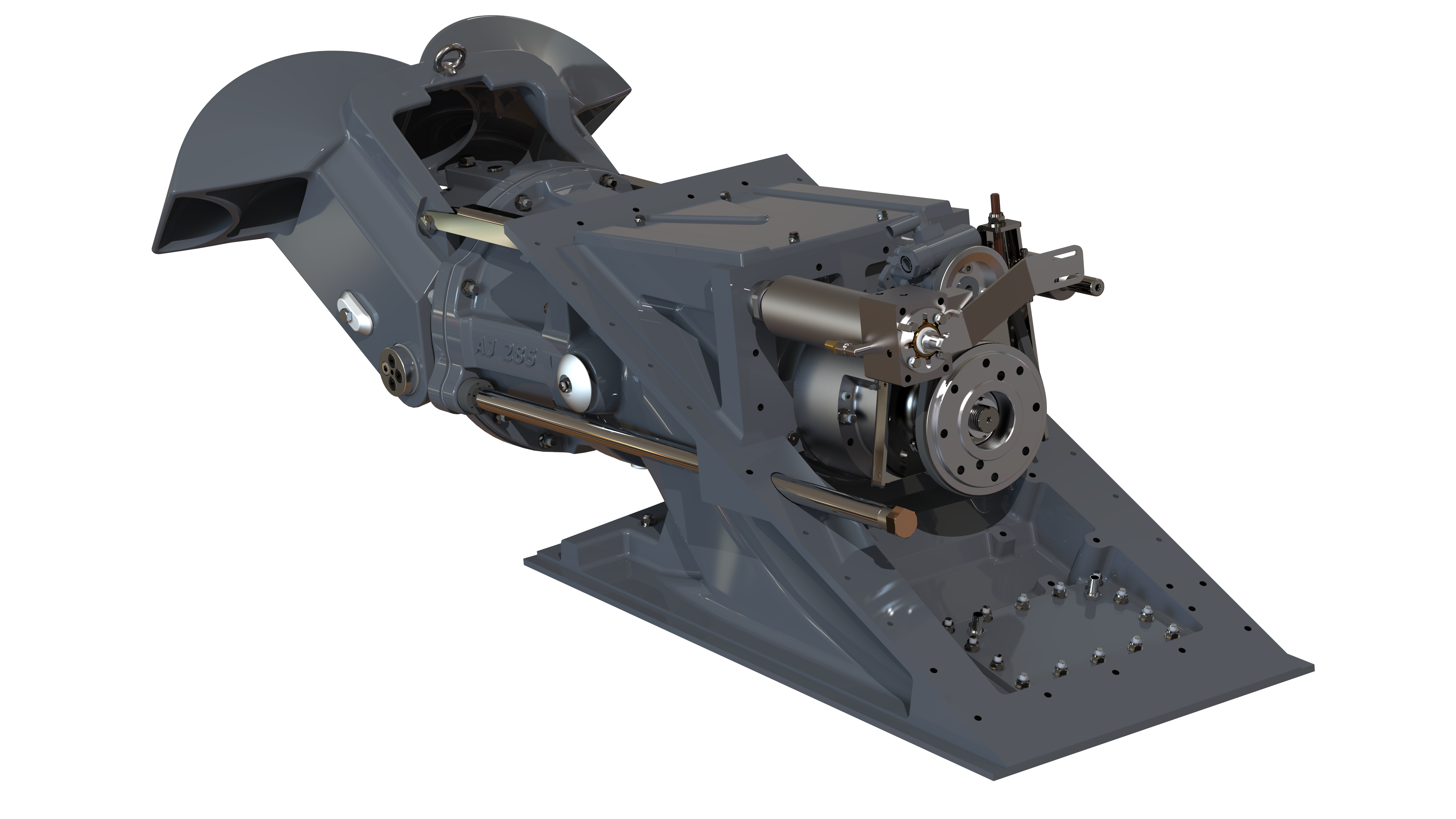

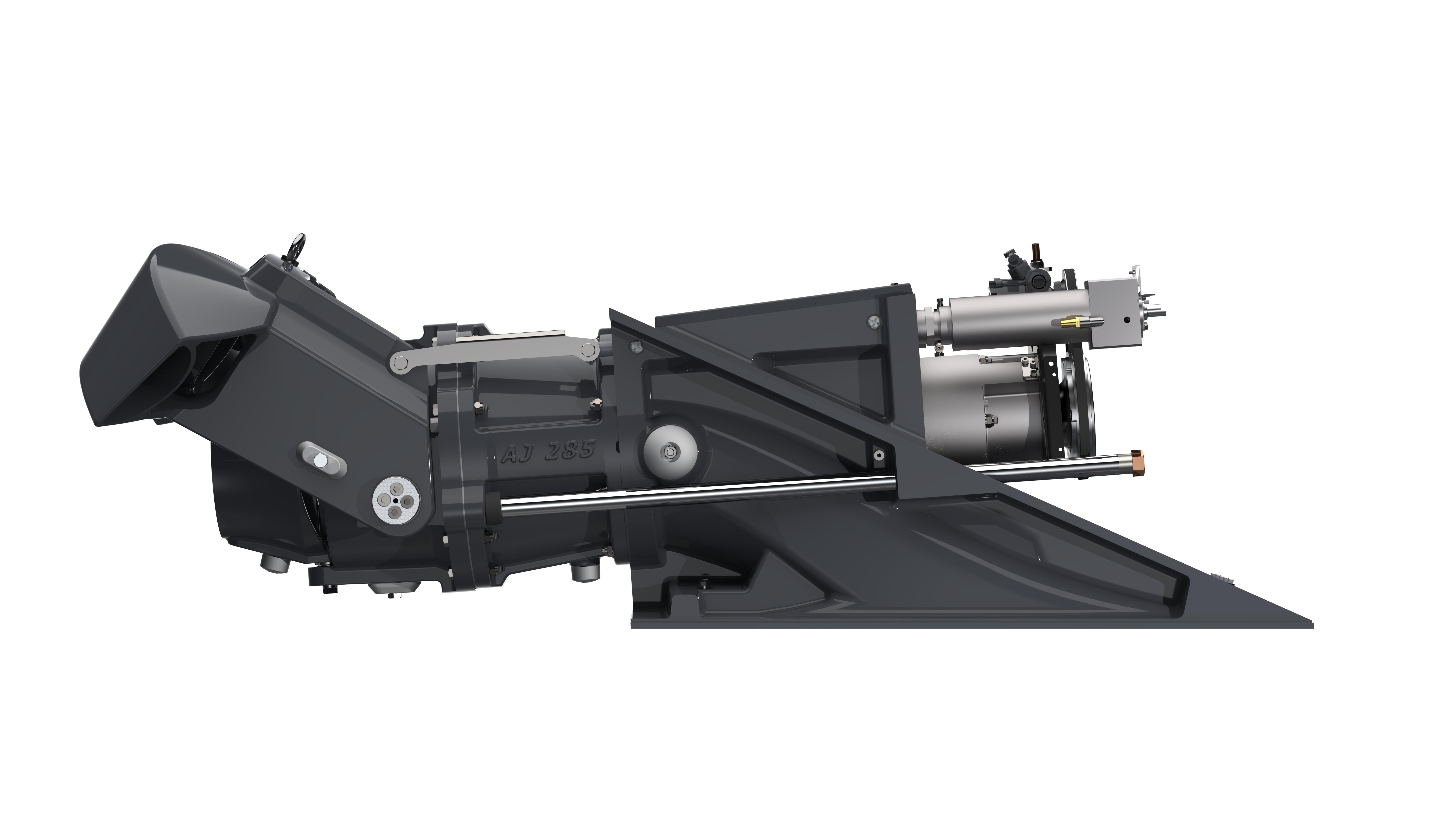

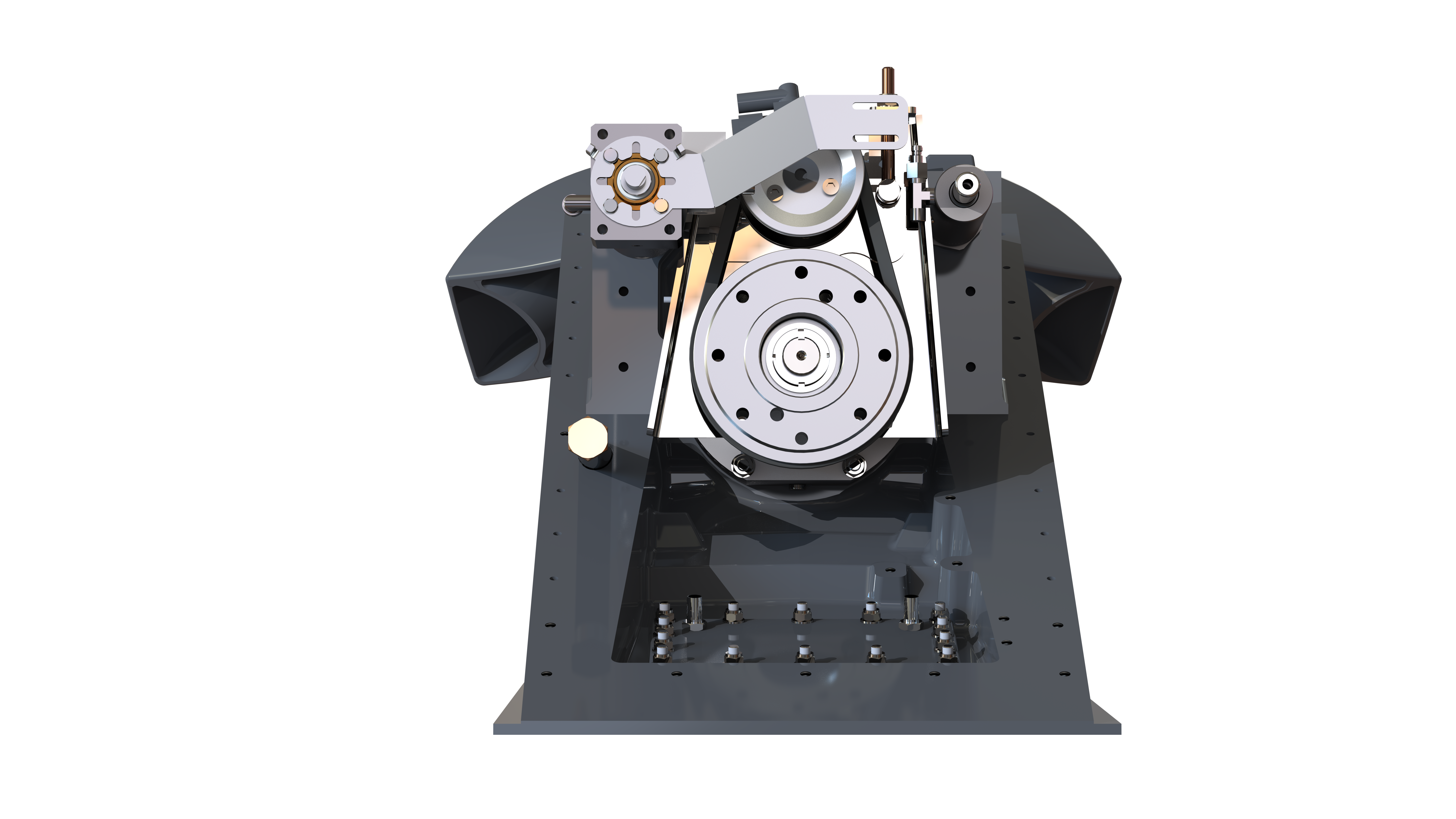

AJ 285

he AJ 285 is the newest jet in the COMBI-FRAME series. The patented Combi-Frame technology allows designers, builders and owners maximum flexibility when locating the position of the propulsion system within the vessel.

Choosing between 2 different hull installation inserts allows the jet to be installed either in LONG TAIL or SHORT TAIL configuration. Following the success of AJ 245 many customers requested the combi-frame installation method for larger, more powerful vessels. AJ 285 is suitable for engines up to 500HP. Applications include workboats, military vessels, pleasure craft and many more.

Features include:

Conical impeller housing
Oil lubricated main bearing
Grease lubricated rear bearing
Integrated oil cooler
Patented COMBI FRAME installation method
Integrated steering cylinder
Universal hydraulic system
AJ 285 is compatible with AJ ACU and AJ SIGMA Controls

Pump type
Mixed flow

Max impeller diameter
288mm / 11.3″

Max impeller shaft RPM
3700 1/min

Max input power
368 kW / 500 HP

Max vessel displacement
5000kg / 11000lbs

Jet construction
Aluminium / Stainless Steel

Jet weight
148kg / 325lbs

Reverse deflector control
Hydraulic
