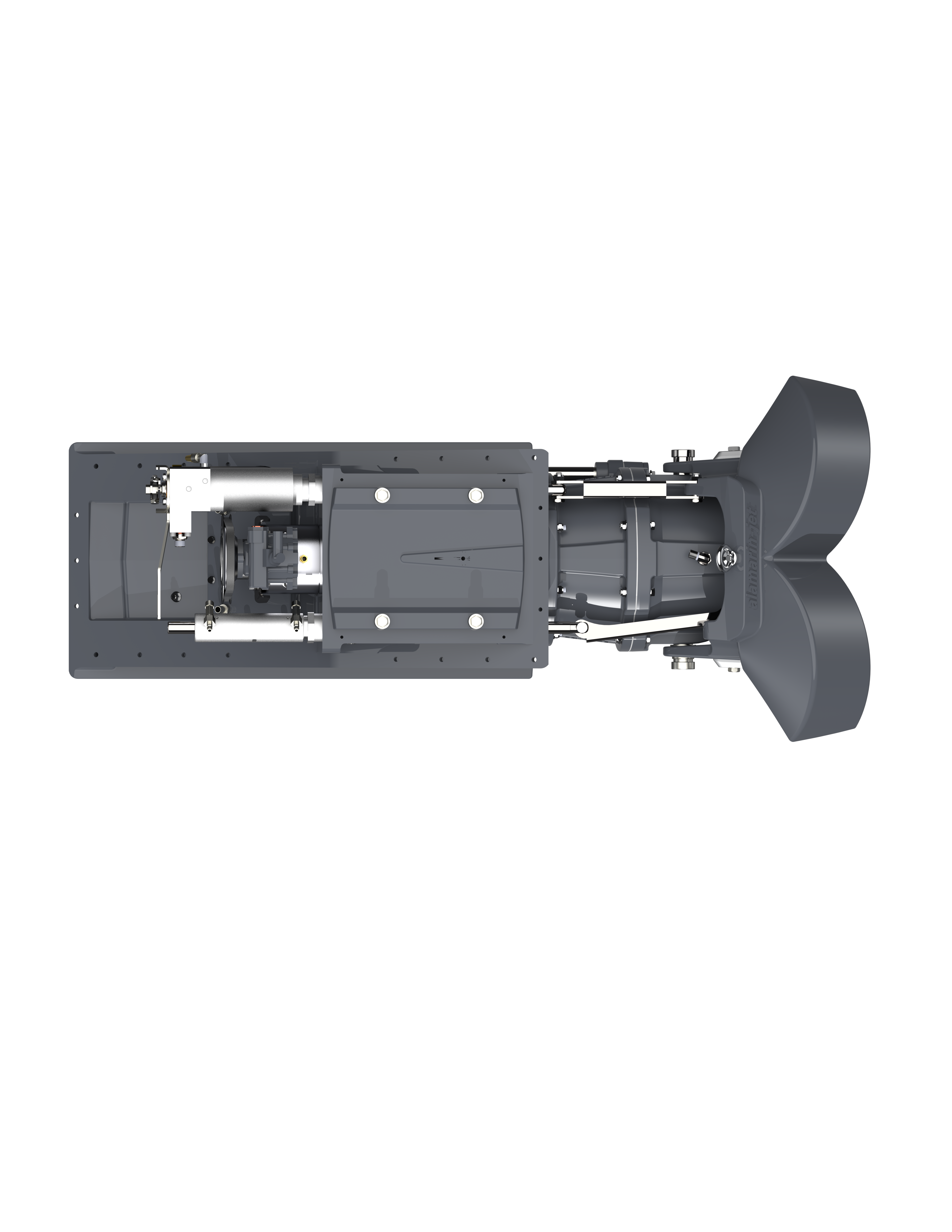

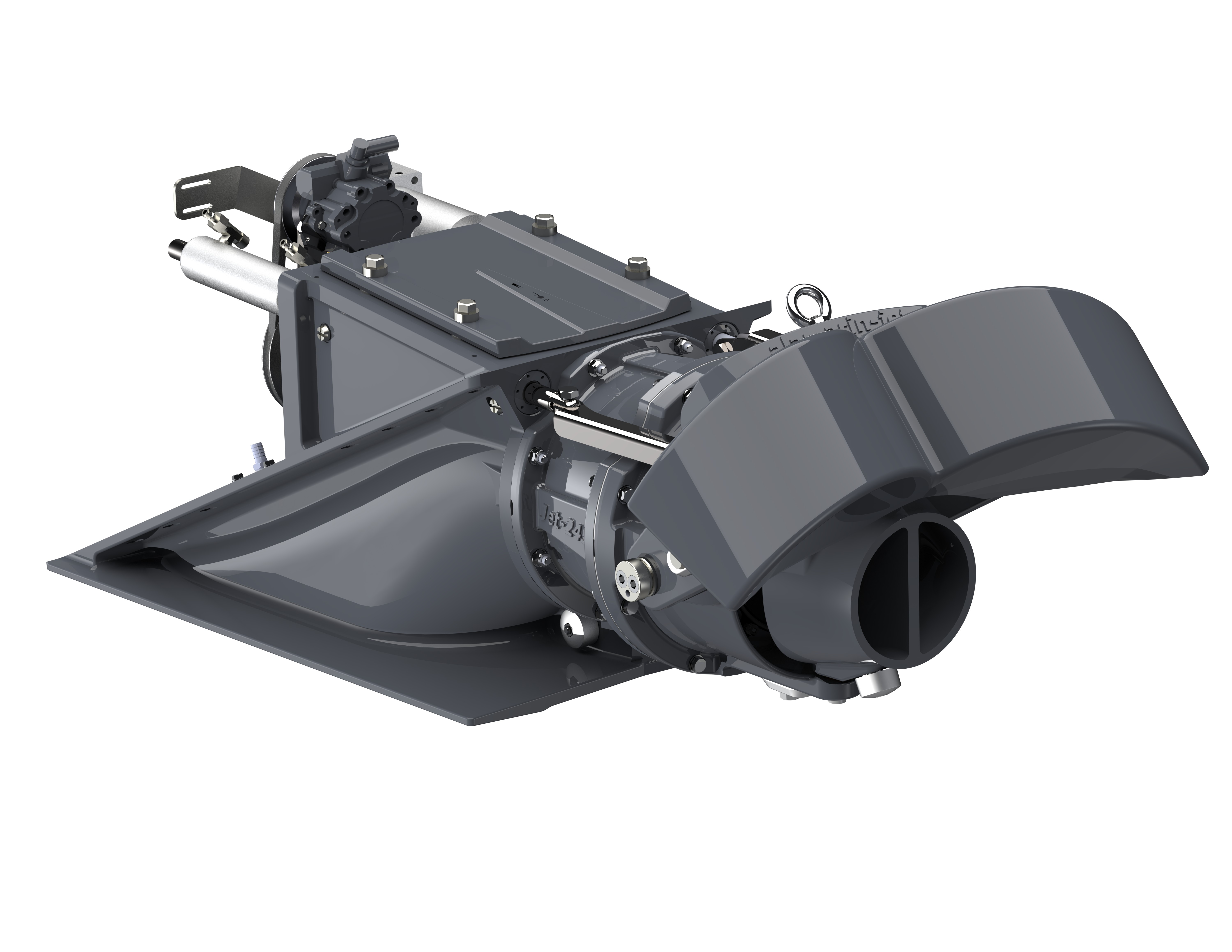

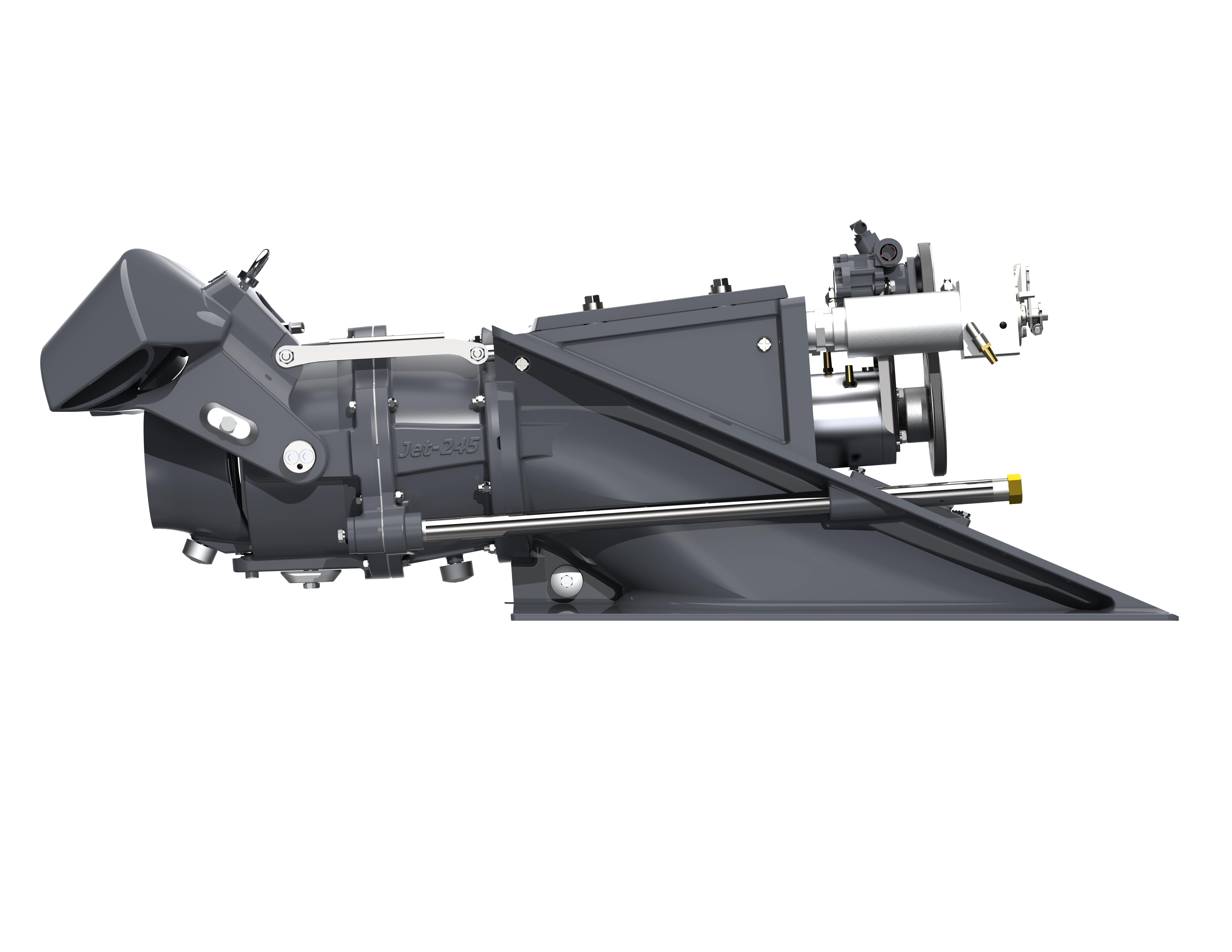

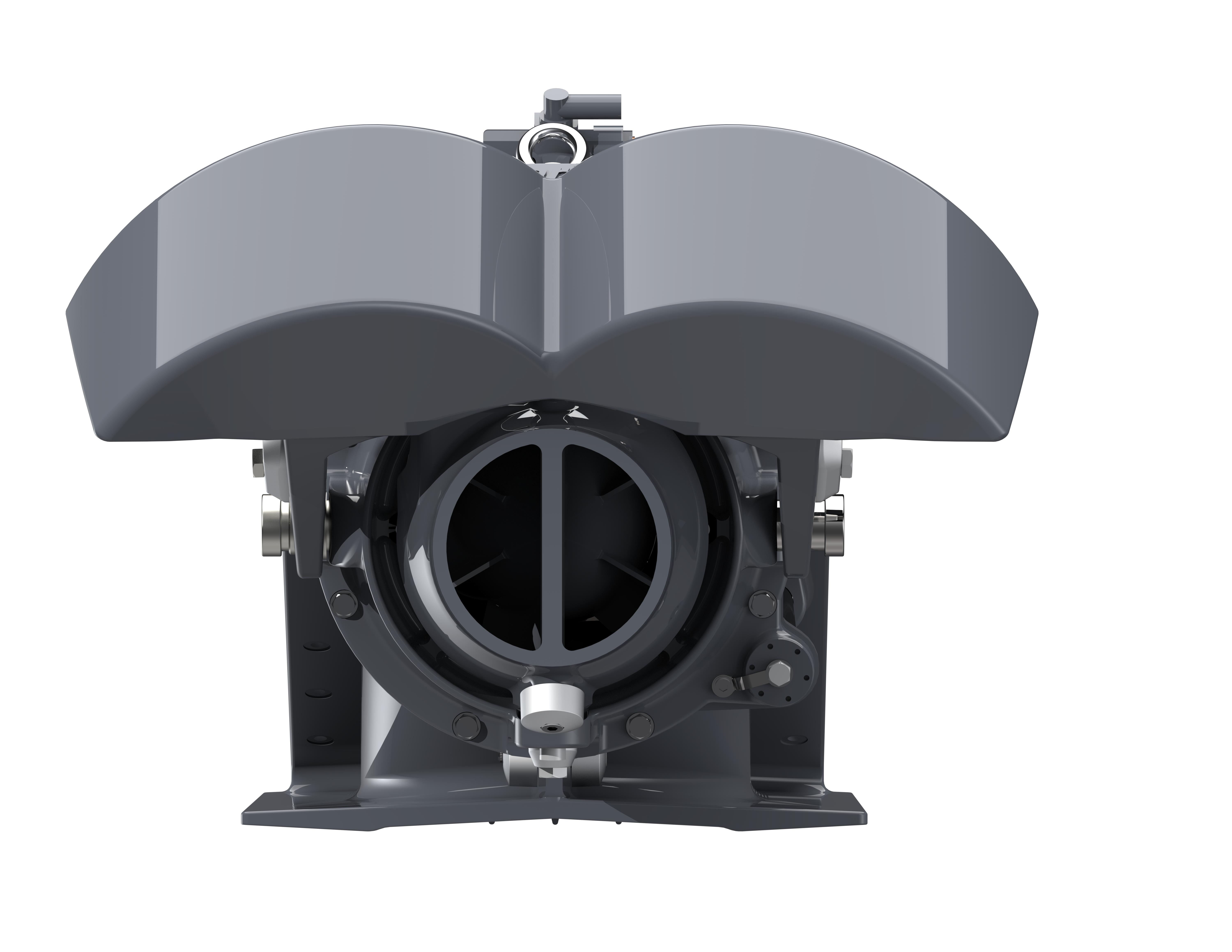

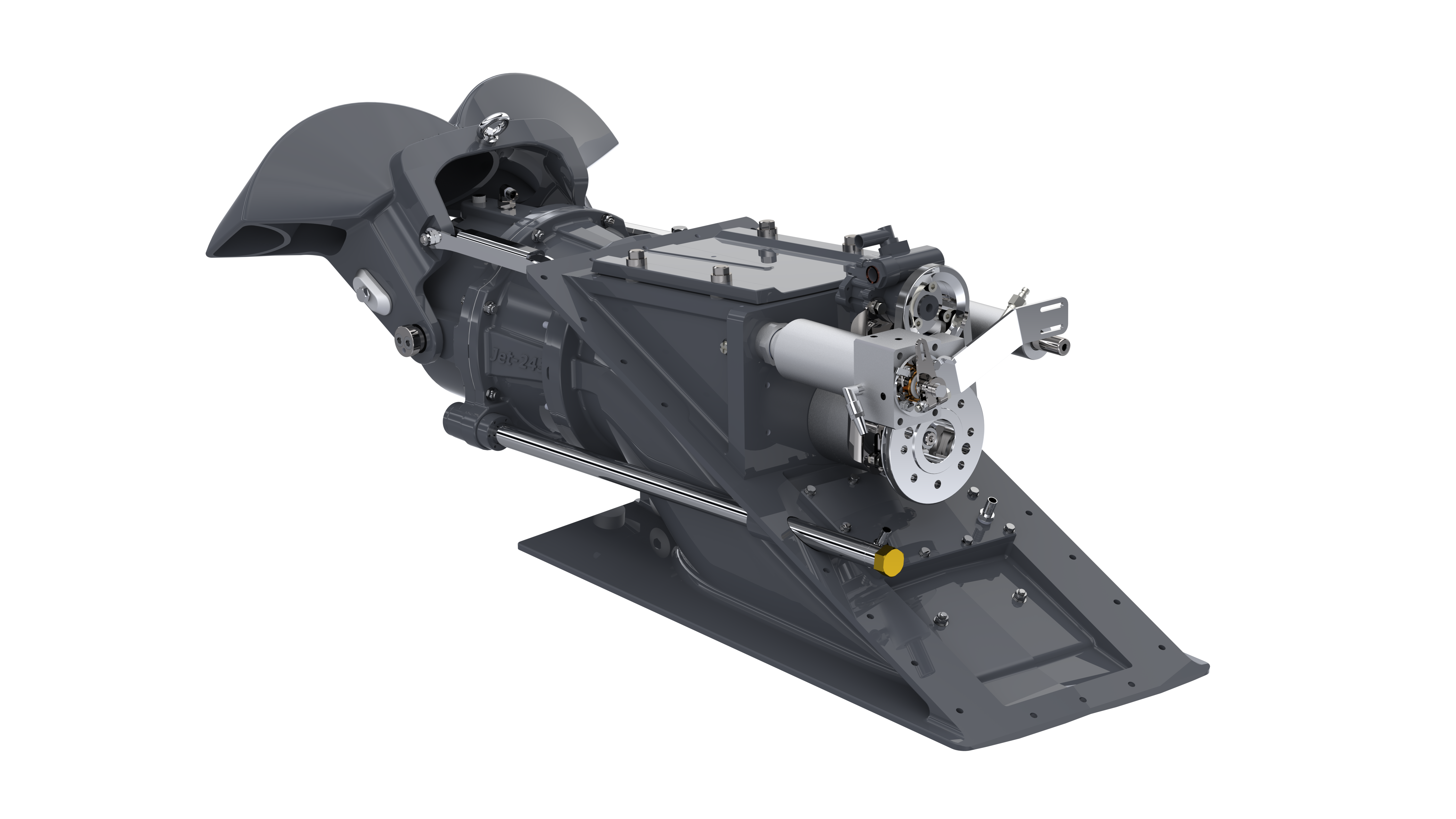

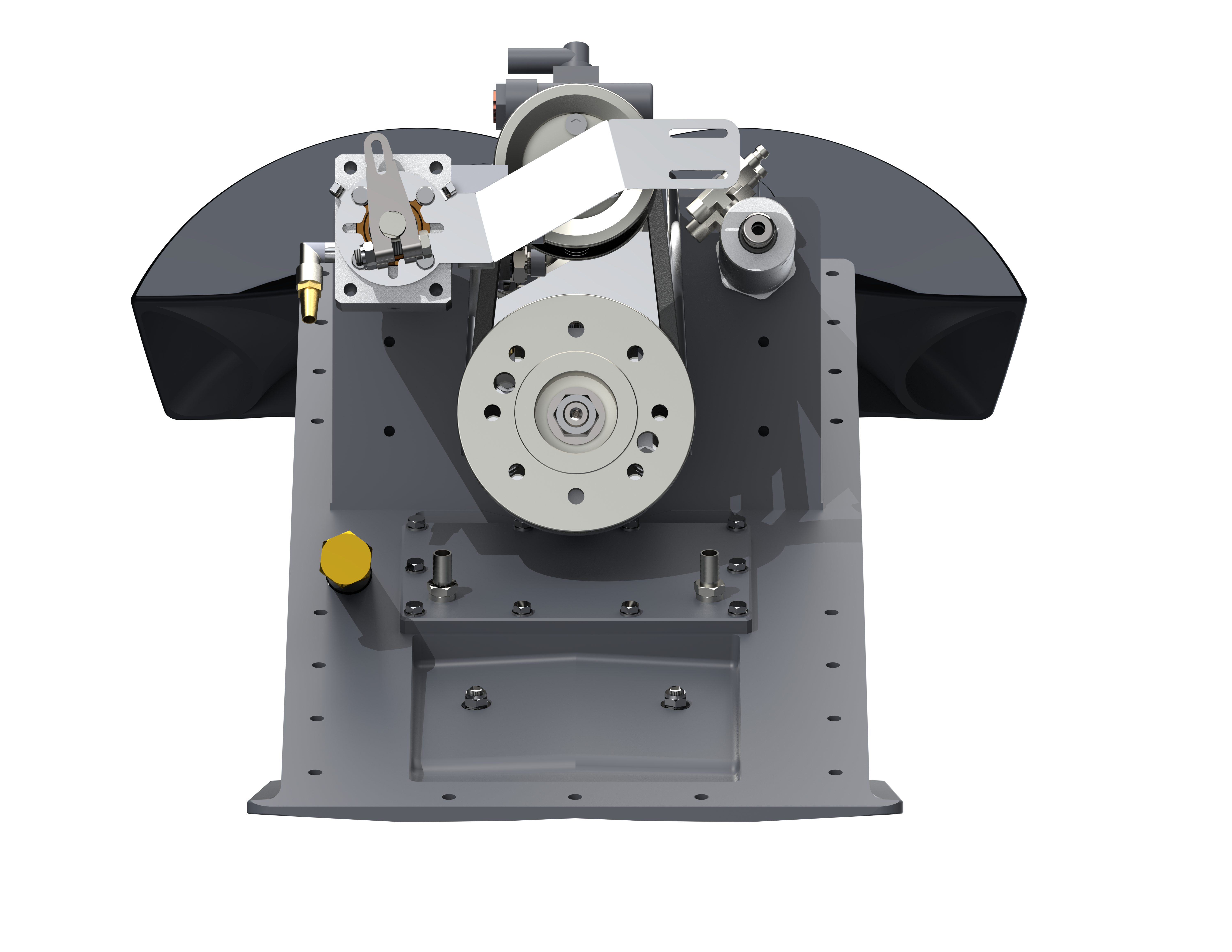

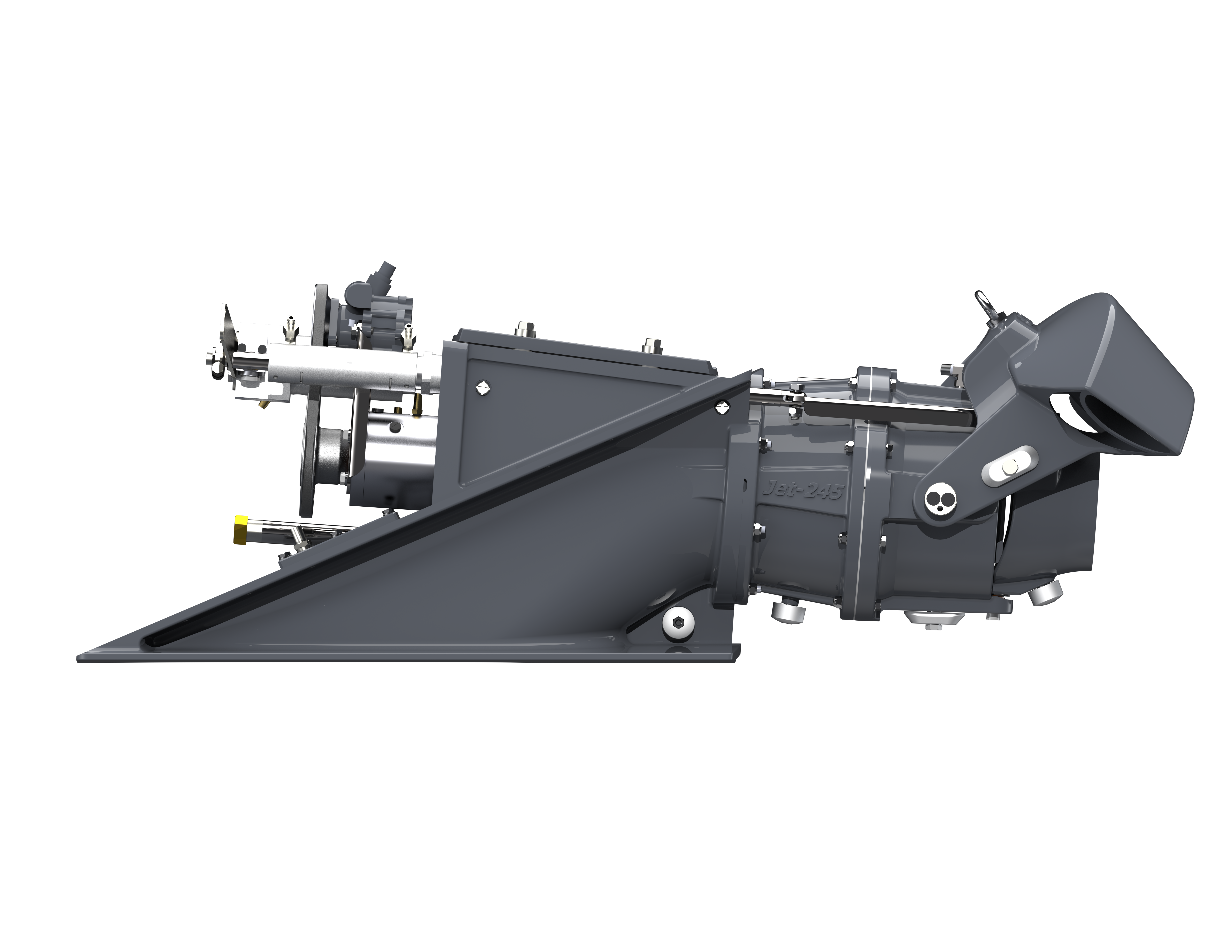

AJ 245

The AJ 245 is the first jet in the COMBI-FRAME series. The patented Combi-Frame technology allows designers, builders and owners maximum flexibility when locating the position of the propulsion system within the vessel.

Choosing between 2 different hull installation inserts allows the jet to be installed either in LONG TAIL or SHORT TAIL configuration. Partner these features with class leading bollard pull, cavitation limits and acceleration the AJ 245 is the best performing jet of its size available.

Features include;

Conical impeller housing
Oil lubricated main bearing
Grease lubricated rear bearing
Integrated oil cooler
Patented COMBI FRAME installation method
Integrated steering cylinder
Universal hydraulic system
AJ 245 is compatible with AJ ACU and AJ SIGMA Controls

Pump type
Mixed flow

Max impeller diameter
245mm / 9.6″

Max impeller shaft RPM
4600 1/min

Max input power
235 kW / 320 HP

Max vessel displacement
3500kg / 7700lbs

Jet construction
Aluminium / Stainless Steel

Jet weight
95kg / 209lbs

Reverse deflector control
Hydraulic

Liferaft Capacity Model SWL Standard Outreach Max Launching Height

<16 P
<25 P
<39 P

Lms.15.2/3.3.5
Lms.23.2/3.6
Lms.37.0/4.5
15.2kN
23.2kN
37.0kN
3.5 m
3.6 m
4.5 m
45
45
45
×
