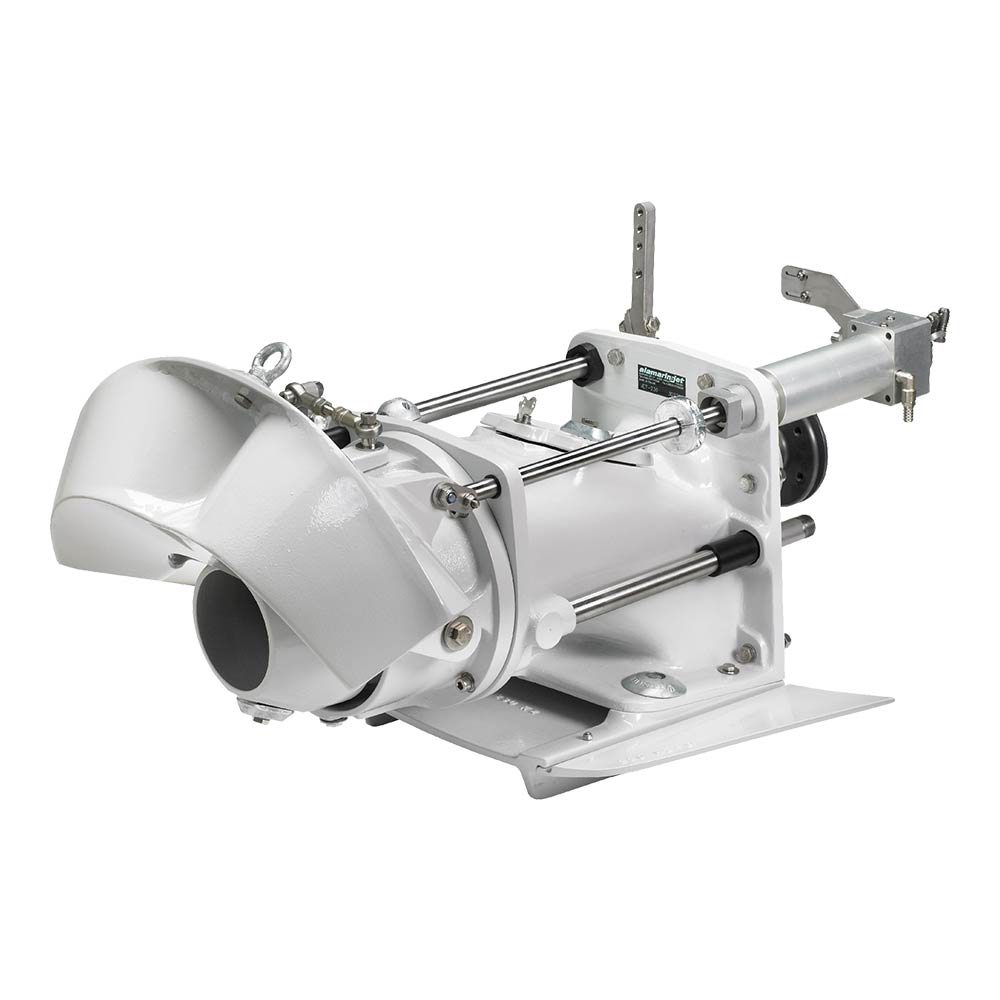

AJ 230

The AJ 230 is the highest selling Alamarin-Jet product of all time, it is now the industry standard for SOLAS Fast Rescue Craft and is renown world wide for its extremely robust and simply design while maintaining high cavitation limits with high speed vessel performance.

The AJ 230 is no longer available for NEW projects as it has been superseded by the AJ 245 which boasts even better performance in a compact and user friendly package HOWEVER the AJ 230 will not stop production and will always be available for repowers and continued vessel series production. Applications include SOLAS FRC, workboats, military vessels, pleasure craft and many more.

Conical impeller housing
Grease lubricated main bearing
Grease lubricated rear bearing
Universal hydraulic system

Pump type: Mixed flow
Max impeller diameter: 228mm / 9_
Max impeller shaft RPM: 4500 1/min
Max input power: 190 kW / 260 HP
Max vessel displacement: 3000kg / 6 600lbs
Jet construction: Aluminium / Stainless Steel
Jet weight: 81kg / 179lbs
Reverse deflector control: Hydraulic

Liferaft Capacity Model SWL Standard Outreach Max Launching Height

<16 P
<25 P
<39 P

Lms.15.2/3.3.5
Lms.23.2/3.6
Lms.37.0/4.5
15.2kN
23.2kN
37.0kN
3.5 m
3.6 m
4.5 m
45
45
45
